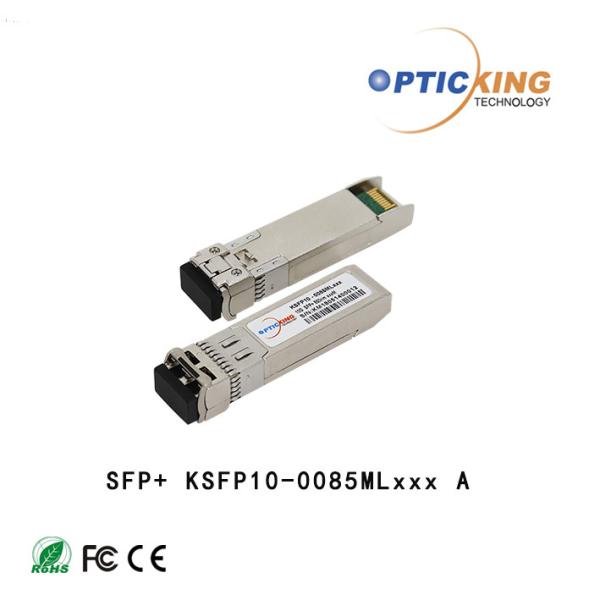

10g Ethernet SFP+ 300m MMF LC 850nm SFP+ Transceiver Module

Name: 10g Ethernet SFP 300m MMF LC 850nm SFP Transceiver Module
Brand: OPTICKING
Price: 1 USD

Best 10g Ethernet SFP+ 300m MMF LC 850nm SFP+ Transceiver Module wholesale

Brand Name : OPTICKING

Model Number : KSFP10-0085ML03X

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : China

MOQ : 5

Supply Ability : 15000Piece/Pieces per Month

Delivery Time : Within 1-8 working days after PO confirmed

Packaging Details : blister box

Product Name : SFP+ Optical Transceiver

Supply Voltage : 3.3V

Data Rate : 10G

Wavelength : 850nm

Transmission Distance : 300m

Fiber Type : MMF

DDM : Yes

High Light : sfp+ fiber optic transceiver, sfp+ transceiver module

Contact Now

10G SFP+ 850nm 300m LC Connector

10G SFP+ 850nm 300m MMF LC Optical Transceiver Optical Module

Description and Characteristics

This transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10Gbps,it designed to be compliant

with SFF-8472 and SFP+ MSA. The module data link up to 300m in 9/125um single mode fiber.

OPTICKING SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature,laser bias current, transmitted optical power, received optical power and transceiver supply voltage.It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular

operating parameters are outside of a factory set normal range.

Product Features

Class 1 laser product EN 60825-1-standards
Operating date rate up to 11.3Gbps
Compliant with MSA SFP+ Specification SFF-8431
Hot pluggable
3.3V single Power supply
TTL singal detect indicator
Operation Temperature Range : X means C( 0~70°C) ; E(-10~85°C); I(-40~85°C).
RoHS-6 Compliant

Ordering Information

Product Number	Wavelength	Date rate	Distance	TX Power	RX Sens	LD	PD	DDM
KSFP10-0085ML03X	850nm	10Gb/s	300m	-8.2~-1dbm	<-9.9dbm	VCSEL	PIN	YES
KSFP10-0031SL10X	1310nm	10Gb/s	10KM	-6~0.5dbm	<-14.4dbm	DFB	PIN	YES
KSFP10-0031SL20X	1310nm	10Gb/s	20KM	-3~2dbm	<-14.4dbm	DFB	PIN	YES
KSFP10-0031SL40X	1310nm	10Gb/s	40KM	-2~+0dbm	<-20dbm	DFB	PIN	YES
KSFP10-0055SL40X	1550nm	10Gb/s	40KM	-4.7~+4dbm	<-14.1dbm	EML	PIN	YES
KSFP10-0055SL80X	1550nm	10Gb/s	80KM	0~+4dbm	<-24dbm	EML	APD	YES
